Description

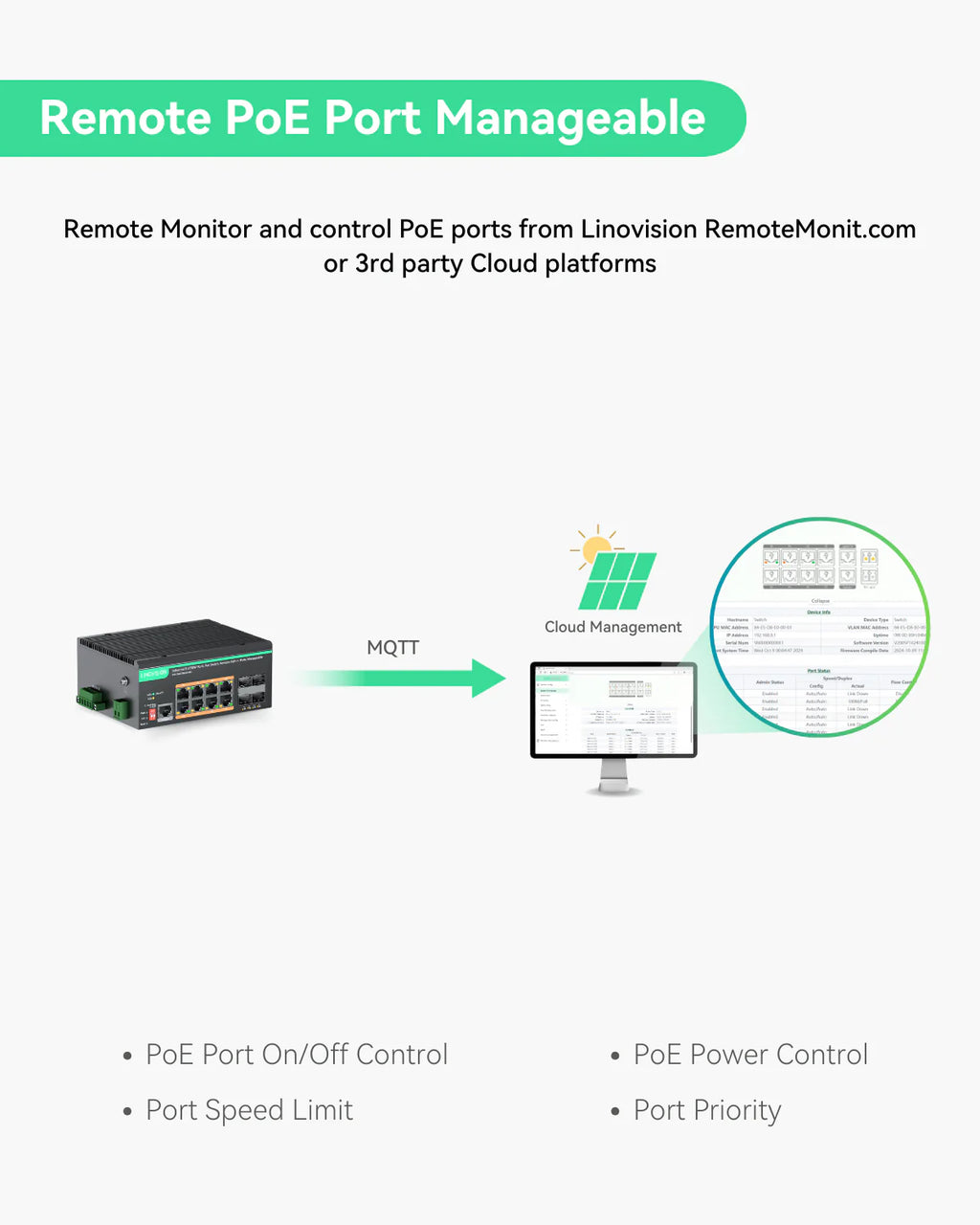

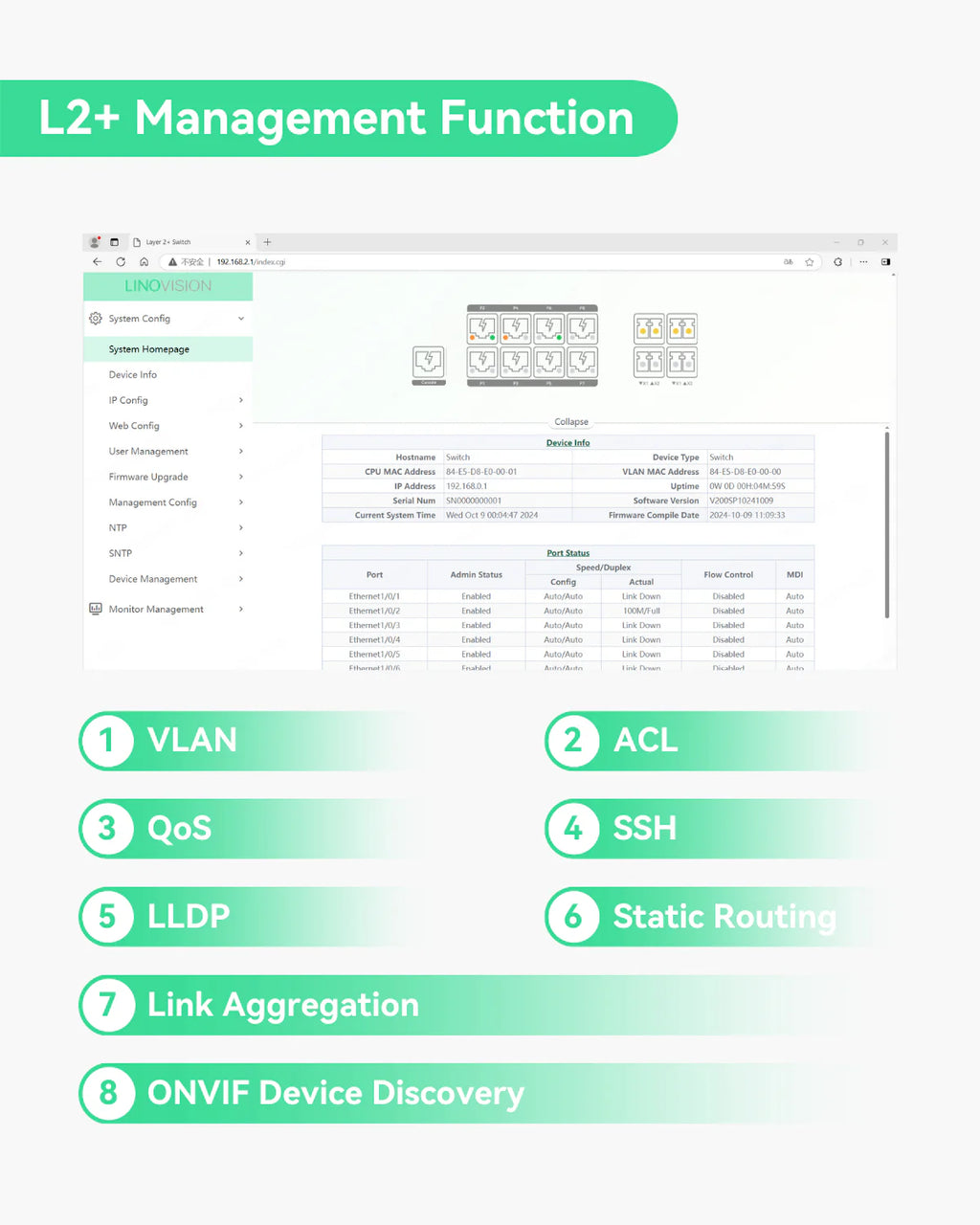

- L2+ REMOTE CLOUD MANAGED PoE SWITCH -Supports L2+ management functions like VLAN, QoS, ACL, Static Routing and Link Aggregation, as well as automatic ONVIF cameras discovery. Device management through WEB GUI, Telnet, SSH, CLI, SNMP, and MQTT Cloud (RemoteMonit Cloud).

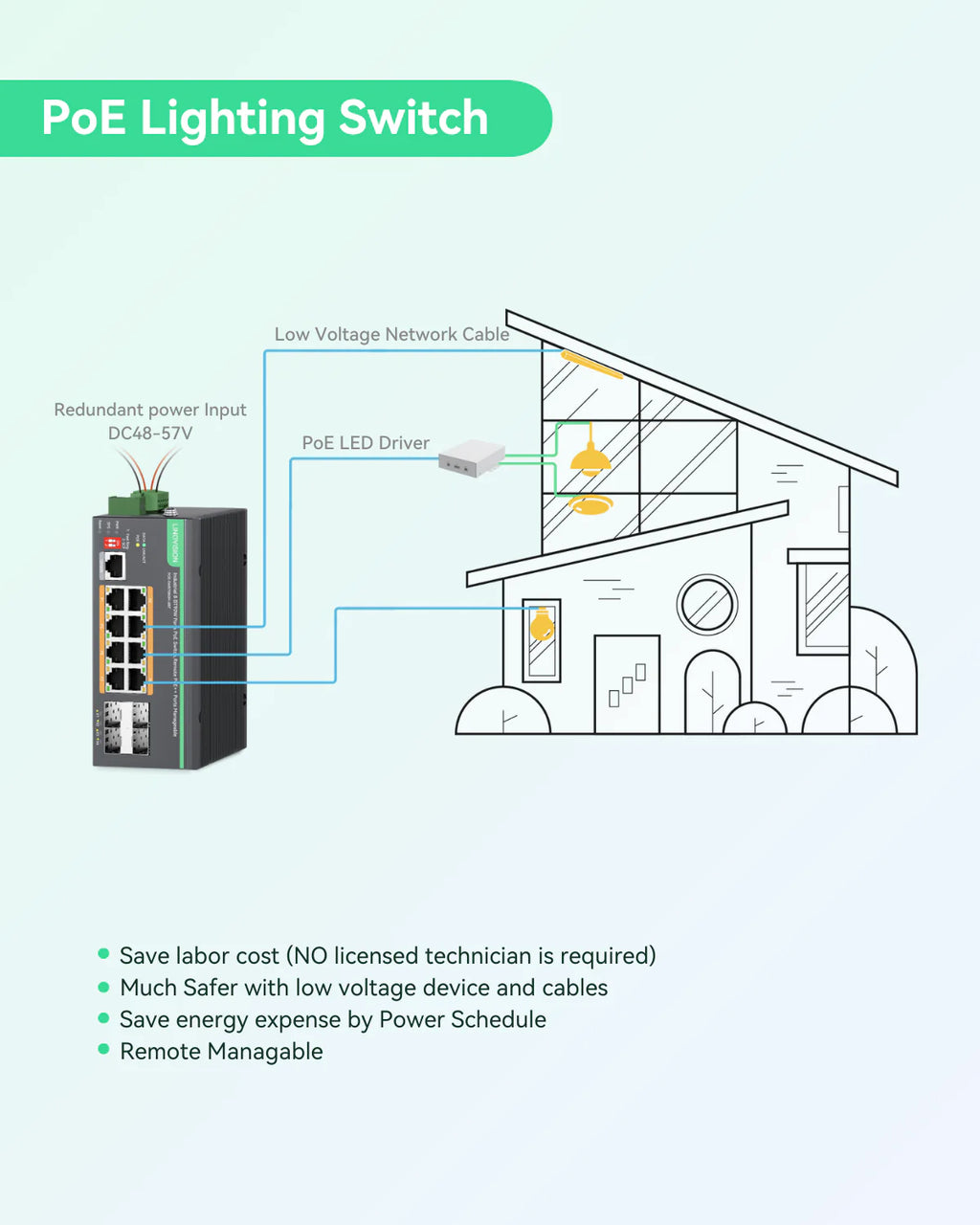

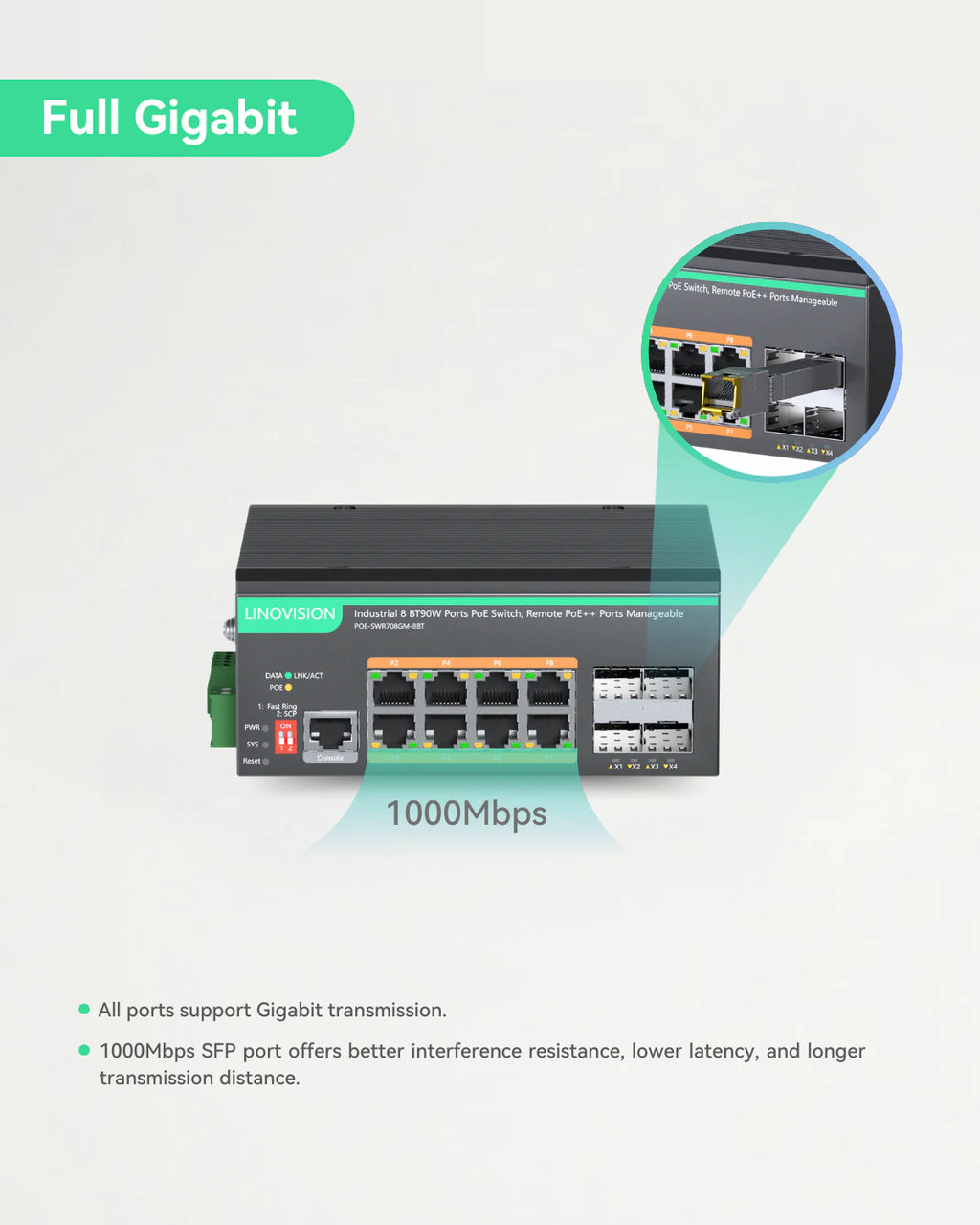

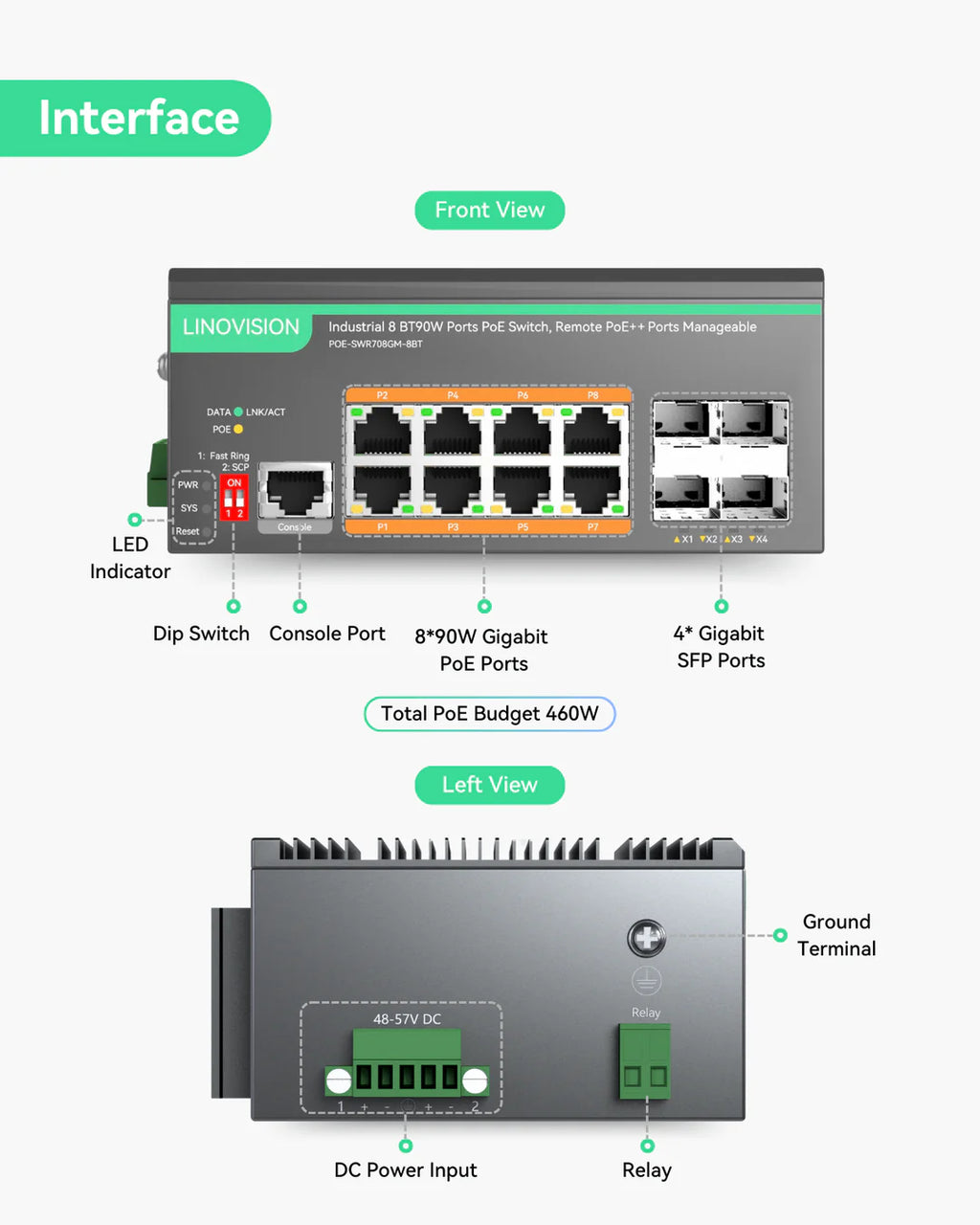

- 8 BT90W PoE++ PORTS-8*IEEE802.3af/at/bt Gigabit PoE outputs, max 90W output per port; Total PoE budget 460W. Also provides 4* Gigabit SFP uplink ports, 1*RJ-45 console port. All ports 10/100/1000Mbps self-adaptive full duplex and Backpressure half-duplex flow control. Suitable for PoE Lighting.
-
Loop Protection-Ensures high reliability with an Ethernet Ring network and increased bandwidth through Static Link Aggregation and LACP. Supports One-Key Fast Ring Fiber Network for quick deployment and SCP for Broadcast Storm Protection.
- REDUNDANT POWER SUPPLY -Support 2 channel DC48V-57V redundant power inputs and auto failover, ensure high reliability networking system.

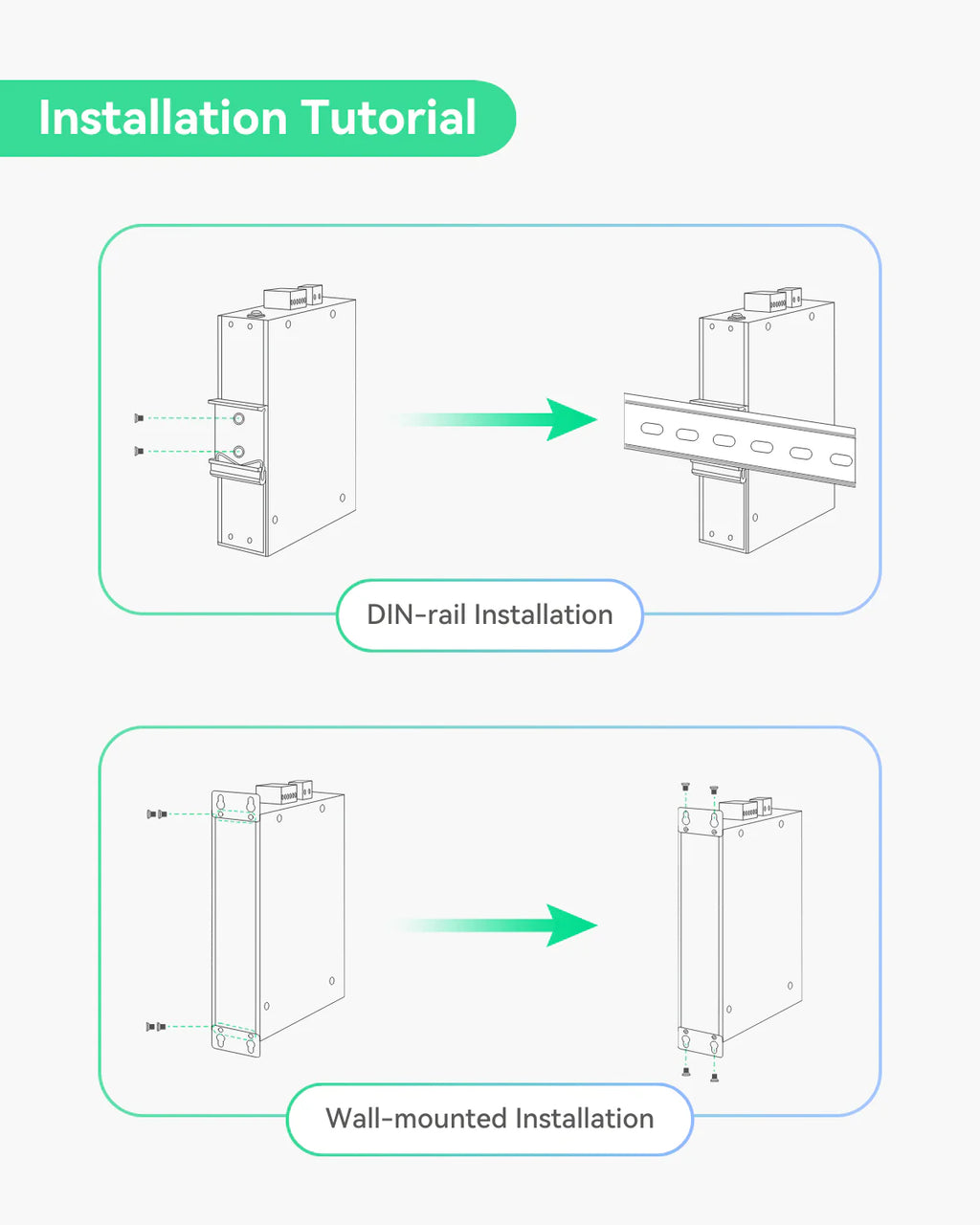

- INDUSTRIAL DESIGN -IP40 Metal shell & fanless design. Support DIN-rail or wall mounted installation. Wide working temperature -40℉ to +167℉（-40℃ to 75℃), 6KV surge immunity and 8KV ESD protection.
- RELAY ALARM- It can trigger alarm event on power failure, ensuring timely notifications to prevent unexpected downtime and enhance system reliability.
Application：
- Suitable for PoE light, IP cameras, PTZ cameras, Wireless AP, VoIP phone, PoE monitor, etc.
-
Direct Replacement for Discontinued Utepo UTP7310S-PSD, compatible with Utepo systems
