Description

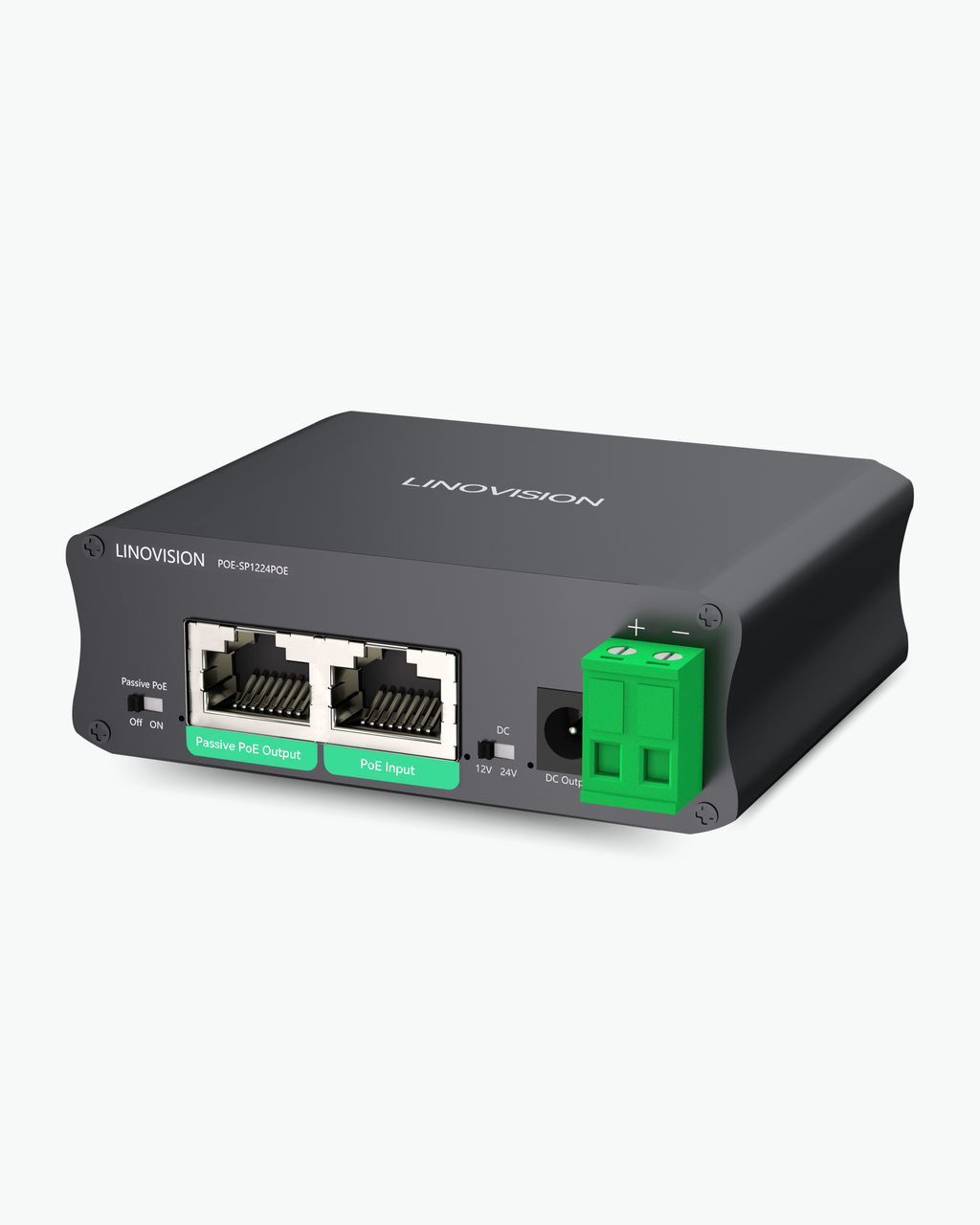

- 30W PoE Splitter - Split IEEE802.3af/at PoE to Switchable DC12V/24V and Passive PoE Output
- DC12V/DC24V OUTPUT - For Non-POE IP cameras, access reader terminals, IP speakers, Routers, etc.
- PASSIVE PoE OUTPUT - For Wireless AP, Wireless Bridges, or other terminals that accept Passive 12V/24V PoE.
- Gigabit Speed - All ports support 10M/100M/1000Mbps transmission bandwith.

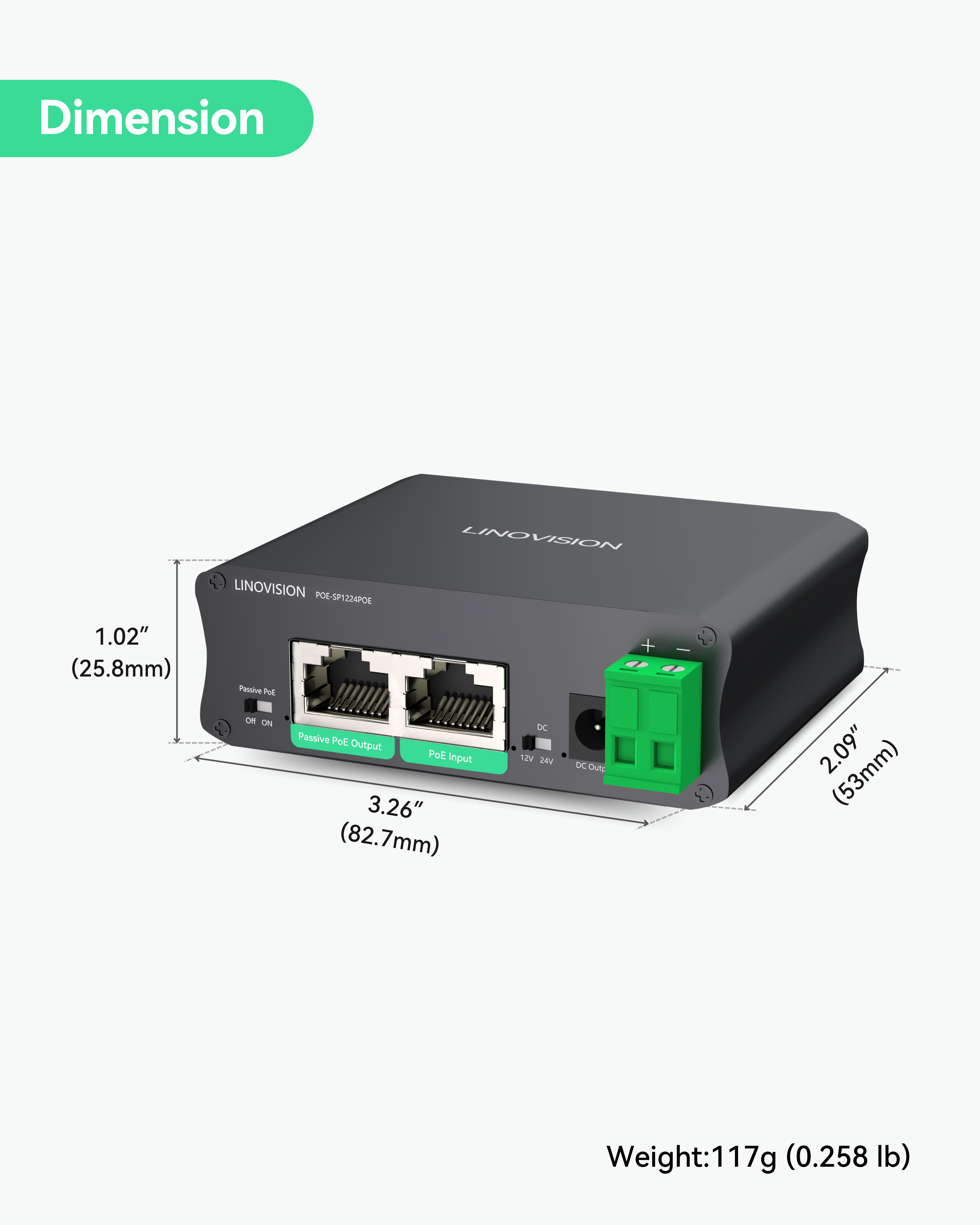

- Compact Dimension - Full metal design, compact dimension 3.26'' x 2.09'' x 1.02''(82.7mm x 53mm x 25.8mm).
Applications
-
Direct Replacement for Discontinued Utepo UTP7201GE-PD25, compatible with Utepo systems
Frequently bought with
The bundle
This Item
x1
+
This item
Frequently bought with
Outstanding Features

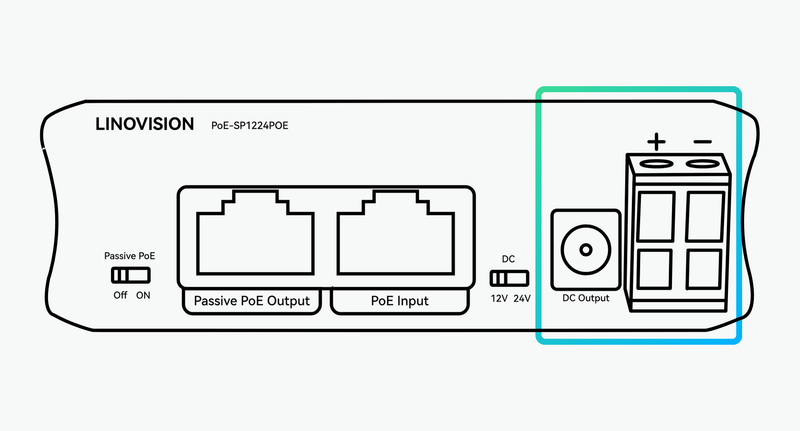

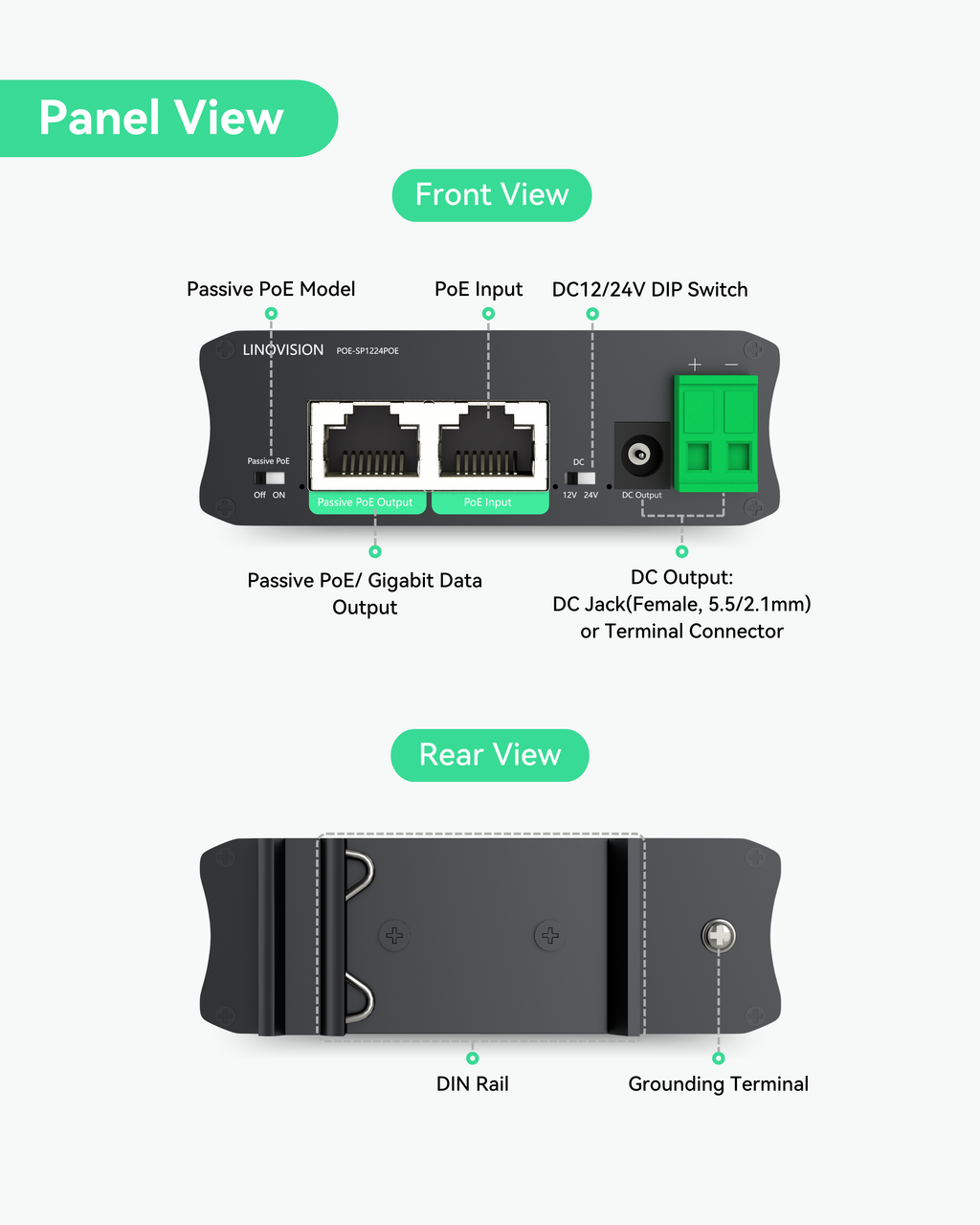

2 Type of DC Output Ports
Provides both DC connector and Green terminal (one DC output at a time), max power output is 25W.

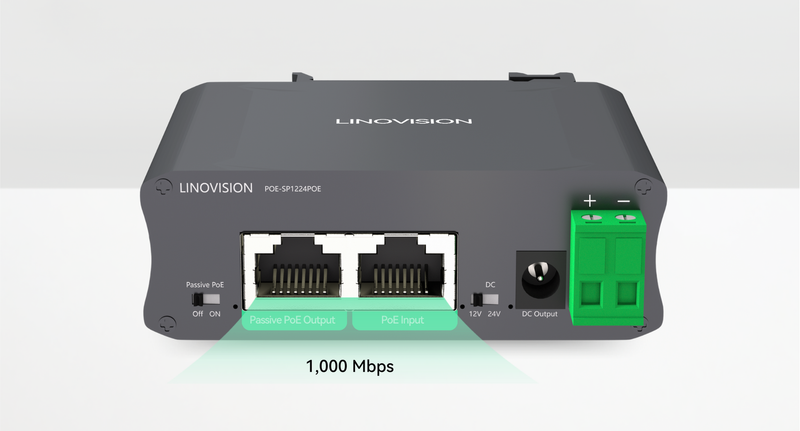

Gigabit Speed
Supports 10/100/1000Mbps transmission speed, max 100 meters (328ft) transmission.
Indestrial Design
- Support POE 36V~60V wide voltage input (max 30W)；
- Industrial chip and aluminum shell；
- Working temperature -40℉~167℉；
- 6KV lighting protection and level 3 ESD protection

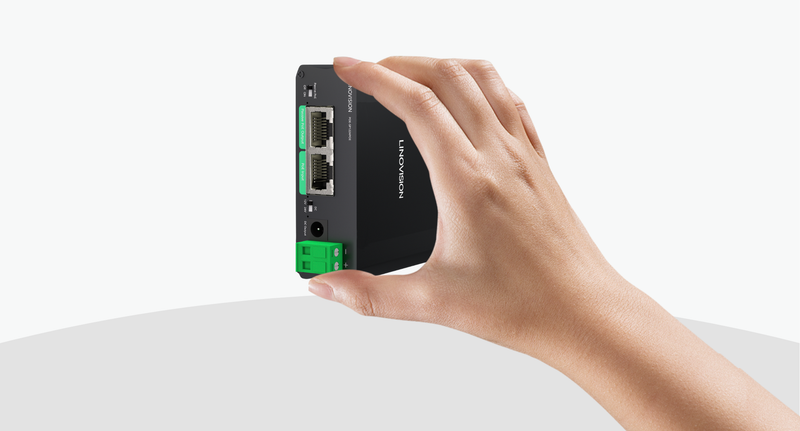

Compact Design

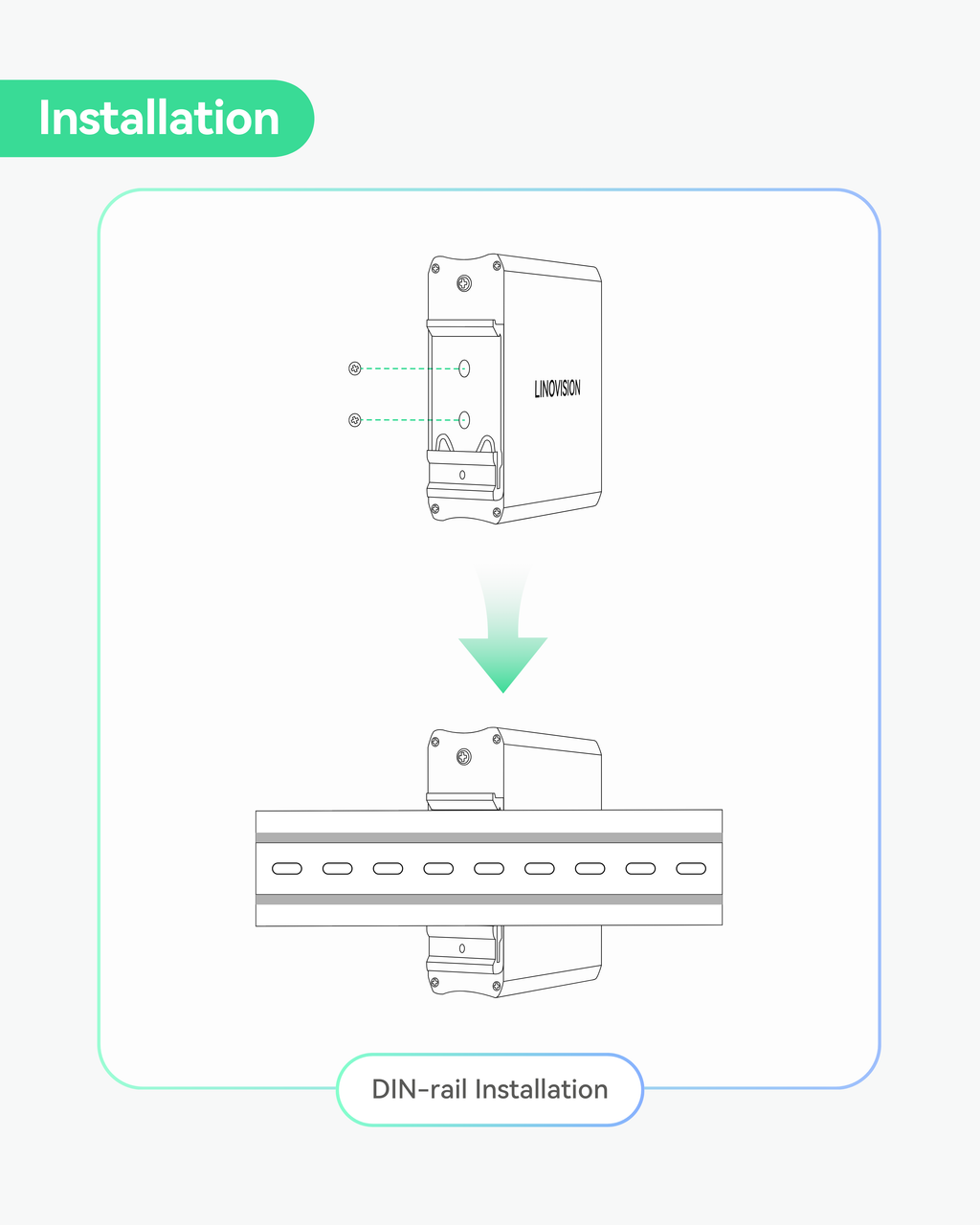

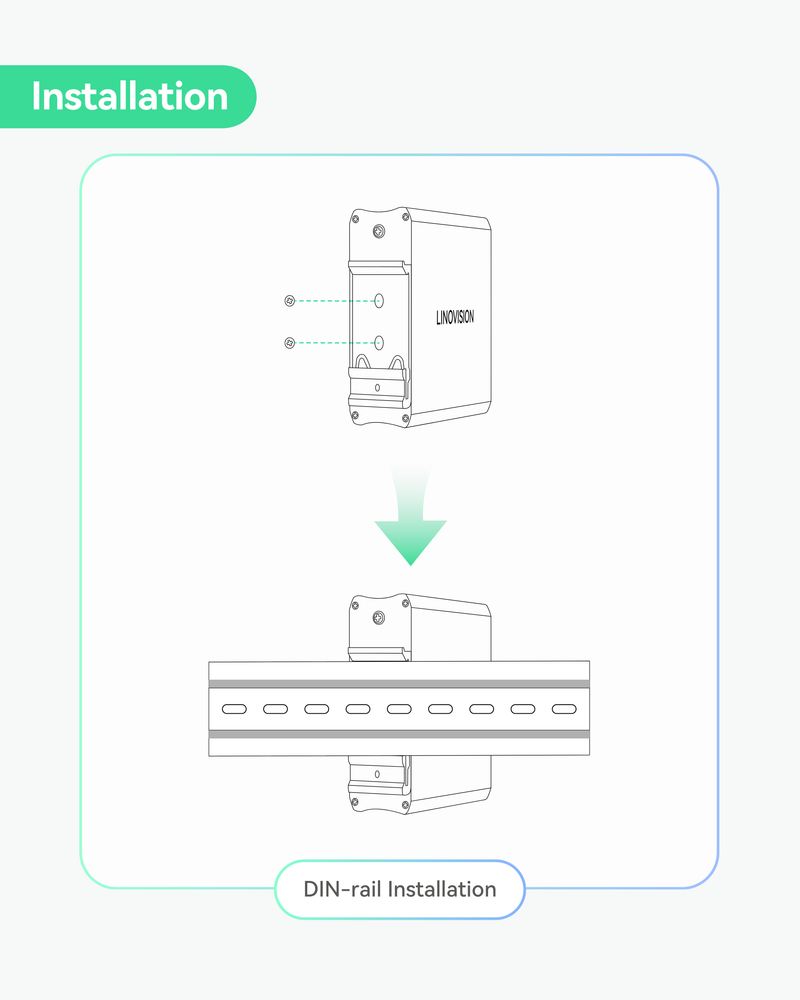

Small volume, easy installation, accord with MIT rack and DIN-rail/wall-mounted installation

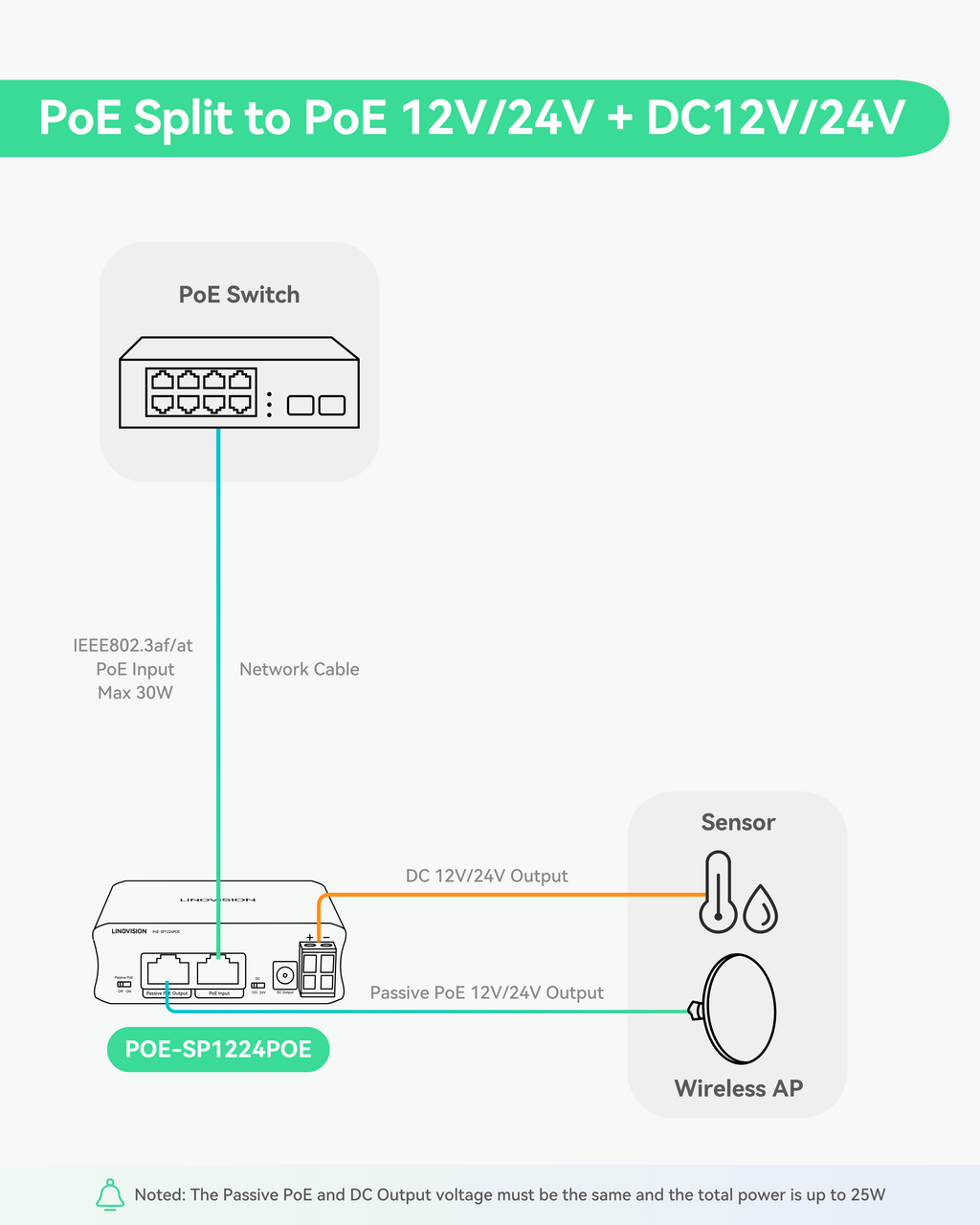

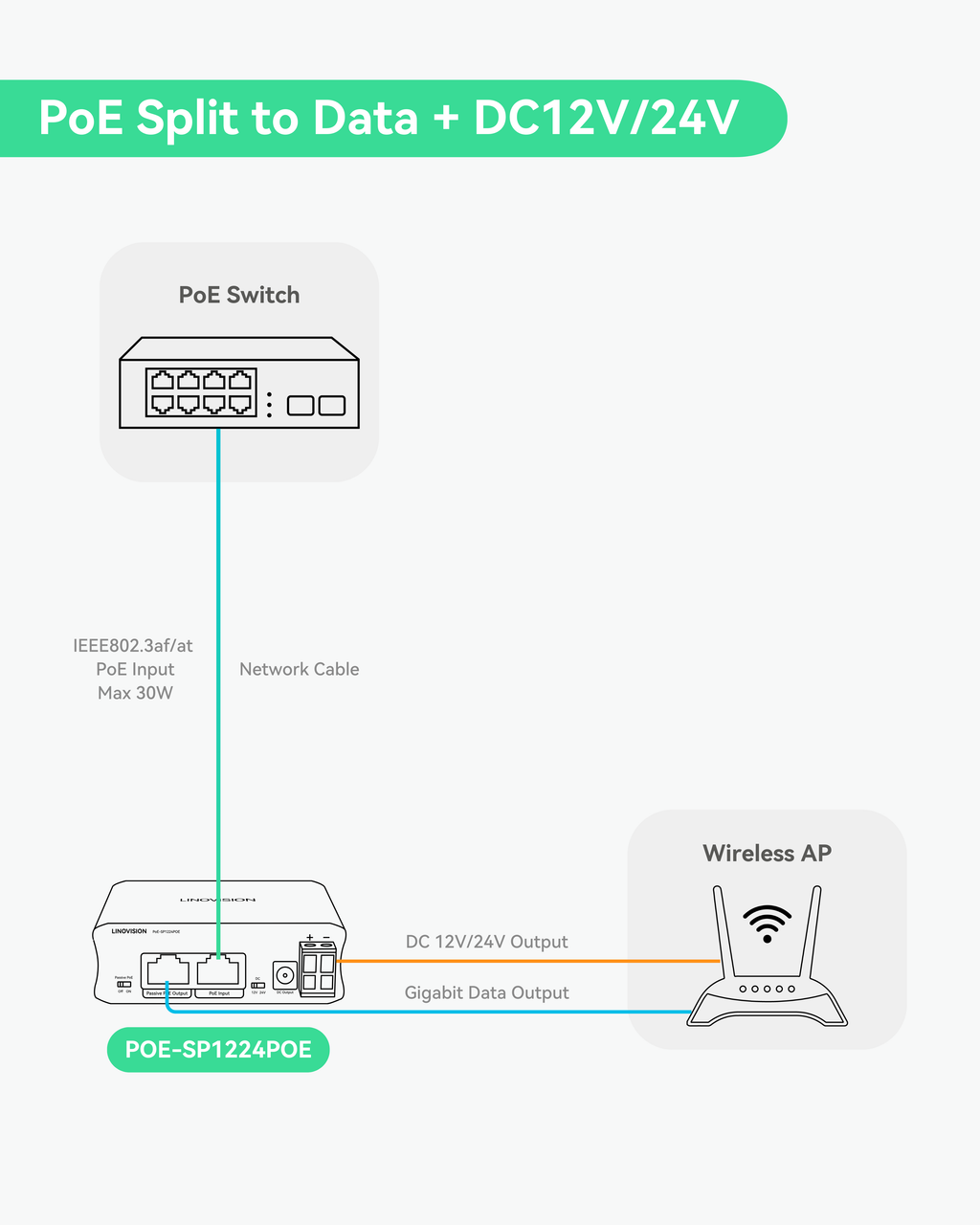

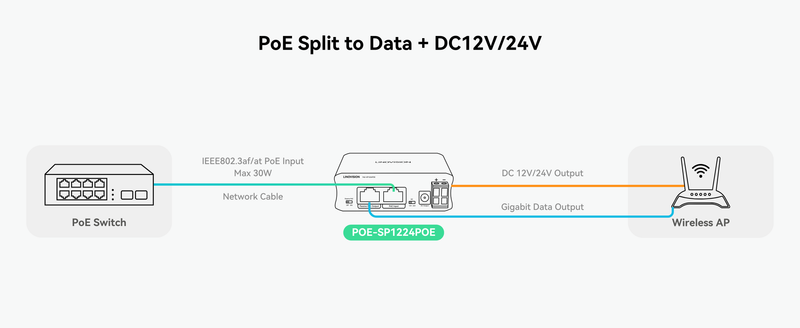

Connection Diagram

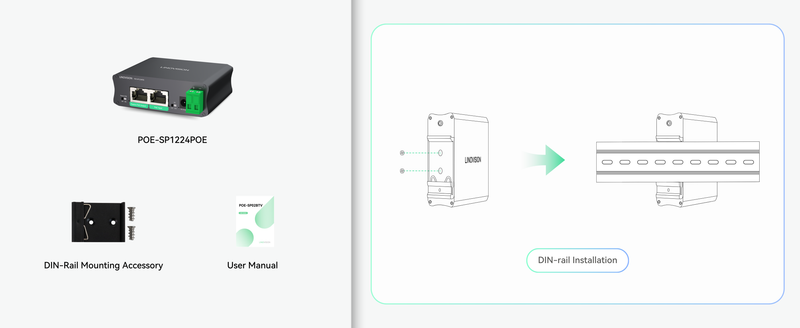

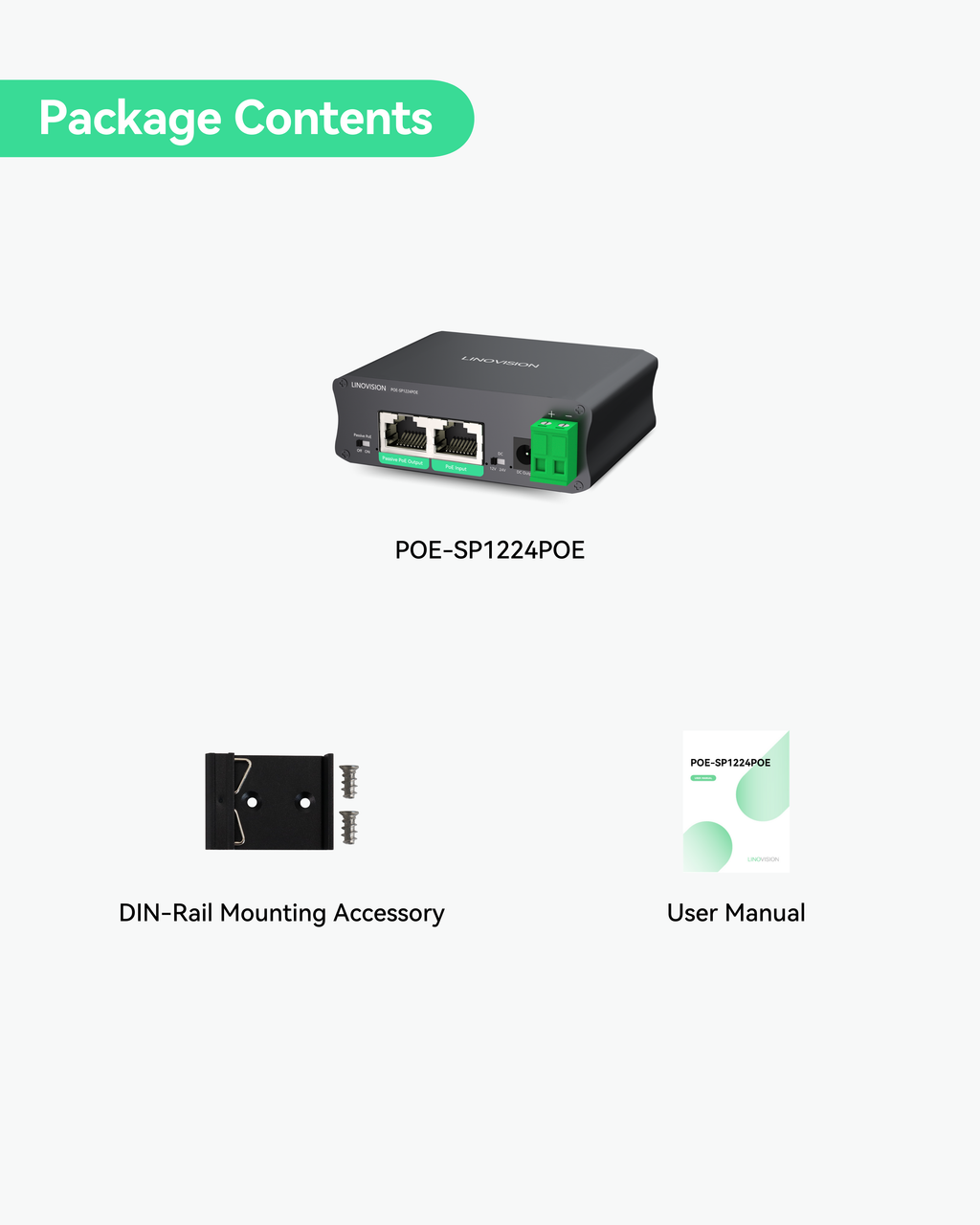

Package & Installation
Key Specification
Comparison
LINOVISION POE Splitter Selection Guide
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| Model | POE-SP24V | POE-SP01 (2 pack) |
POE-SP01P (2 pack) |
POE-SP01C (2 pack) |
POE-USBC01 | POE-SP1224POE | POE-SP30 | POE-SP01BTV | POE-SP02BT-POE | POE-SP02BTV |
| PoE Input | IEEE803.2af/at Max 30W |
IEEE803.2af/at Max 30W |
IEEE803.2af/at Max 30W |
IEEE803.2af Max 15W |
IEEE802.3af/at Max 20W |
IEEE803.2af/at Max 30W |
IEEE803.2af/at Max 30W |
IEEE802.3af/at/bt Max 90W | IEEE802.3af/at/bt Max 90W |
IEEE802.3af/at/bt Max 90W |
| Output1 | Passive 24V POE | 12V DC | USB-C output | USB-C output | USB-C output | 12/24V DC | 5/9/12/18V DC switchable | 3 ~ 36V DC adjustable | 5/9/12/24V DC switchable | 24V DC |
| Output2 | / | / | / | / | / | Passive POE 12/24V | / | / | 48V POE (Active PoE） |
3 ~ 36V DC adjustable |
| Network Speed | Gigabit | 10/100Mbps | 10/100Mbps | 10/100Mbps | 10/100Mbps | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit |
| Waterproof | ✔ | / | ✔ | / | / | / | / | / | / | / |
| Dimension | / | 3.14x1.10x0.82"(80x28x21mm) | 4.1x0.7"(105x17mm) | 3.14x1.10x0.82"(80x28x21mm) | 3.54x1.61x0.94"(90x41x24mm) | 3.27x2.48x1.02"(83x63x25.8mm) | 3.07x2.87x1.10"(78x73x28mm) | 3.93x2.75x1.18"(100x70x30mm) | 4.69x3.37x1.1"(119x85.5x28mm) | 3.74x2.75x1.14"(95x70x29mm) |
| Installation | / | / | / | / | / | DIN-Rail/ Wall-Mount |
Wall-Mount | DIN-Rail/ Wall-Mount |
DIN-Rail/ Wall-Mount |
DIN-Rail/ Wall-Mount |
