Description
- DC9V-54V POE SWITCH - Support DC9V-54V input and standard IEEE802.3af/at POE output with built-in voltage booster.
- 5-PORT FULL GIGABIT POE SWITCH - Provide 4 IEEE802.3af/at 30W POE ports and 1 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget 120W (DC24V/DC48V input) or 60W (DC12V input).
- INDUSTRIAL DESIGN - Compact IP40 rugged metal enclosure; wide working temperature -40°C to 80°C; Support DIN-Rail & wall mount.
- NON-STOP POE SUPPLY WITH DUAL POWER INPUT - Support 2 channel DC9V-54V redundant power inputs and auto failover, ensure high reliability networking system. Compatible with Mode B POE outputs only.
Applications
- Offer standard POE supply in solar power system (DC12V/DC18V/DC36V input)
- RV/Vehicle/Truck/Bus system (DC12V input) where need POE ports
- Suitable for UPS system (DC24V input) which need standard POE output
LINOVISION Industrial 5 Ports Gigabit Solar POE Switch with DC12V-48V to DC48V Voltage Booster, Supports 4 x IEEE802.3af/at 30W POE Ports @120W, Compact POE Power Supply for Solar Power/RV Truck/VoIP Systems.
Outstanding Features

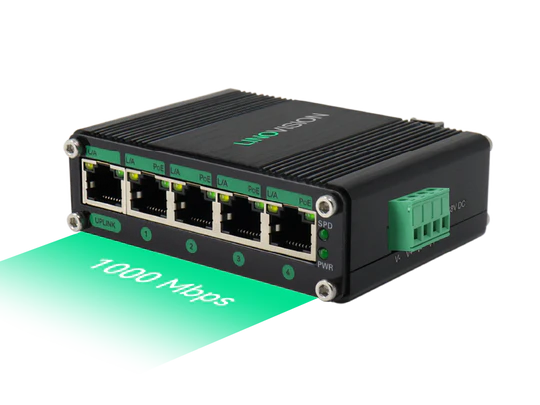

Full Gigabit PoE Switch
4 IEEE802.3af/at 30W POE ports and 1 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget 120W (DC24V/48V) or 60W (DC12V)
PD Detection
PoE port supports PoE automatic detection; When connecting to a non-POE device, provide data transmission only, will not output power to prevent damage
Mini POE Switch
Compact design, DIN rail or Wa mounting easily fit into small cabinets or machines; Dimension (95 x 70x 29mm)
Redundant Power

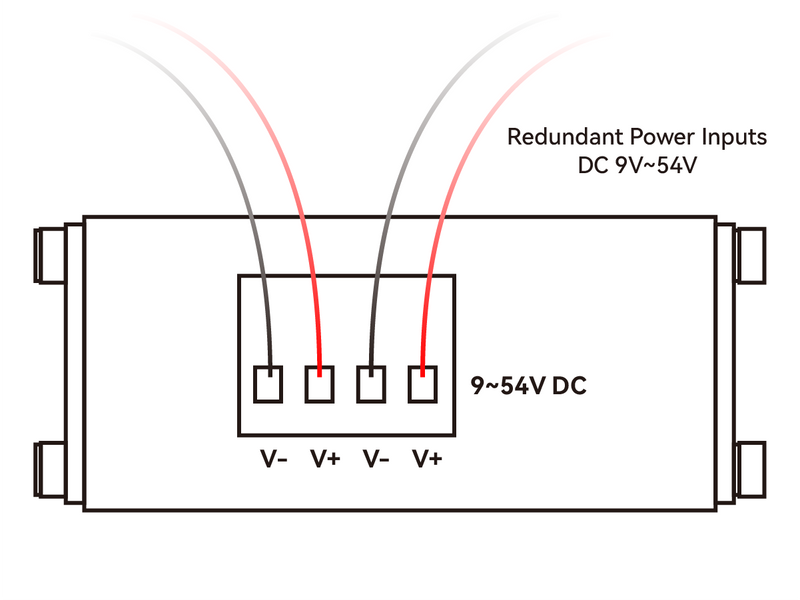

Support 2 channel DC9V-54V redundant power inputs and auto failover, ensure high reliability networking system
Wide Voltage InputSupport
- wide voltage input range (DC9-54V)

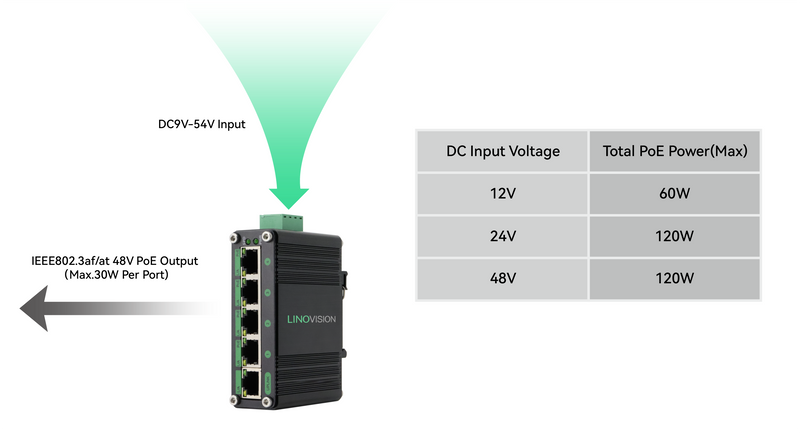

- Up to 30W per POE port, and total
- 120W POE budget ( DC24V / DC48V input ), or 60W ( DC12V input )

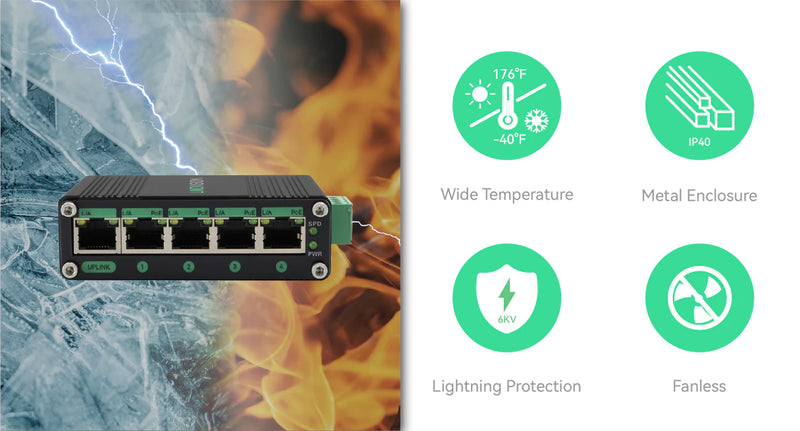

Industrial Design
- Fanless design and wide working temperature (-40℃ ~ 80℃ or -40 ℉ ~176 ℉)
- 6KV surge protection
Interface

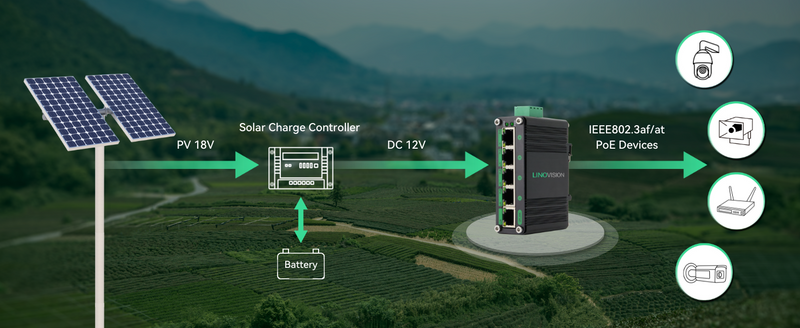

Application1 – Solar Power Systems
Input DC 12V and output IEEE802.3af/at 30W POE

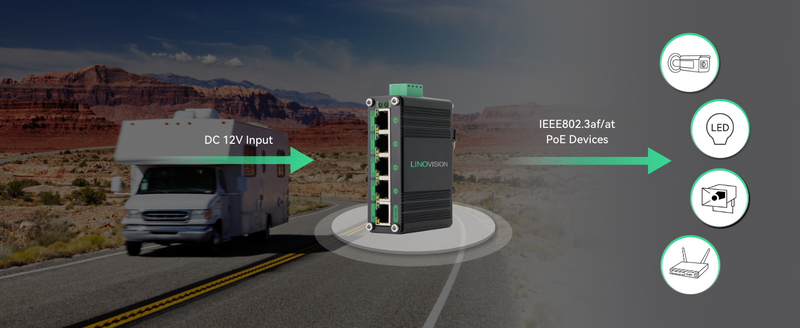

Application2 – RV/Truck POE Supply
Input DC12V and output IEEE802.3af/at 30W POE

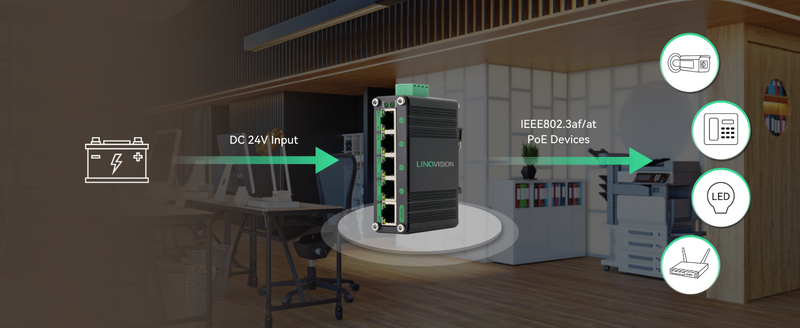

Application 3 – Office UPS System
Input DC24V and output IEEE802.3af/at 30W POE

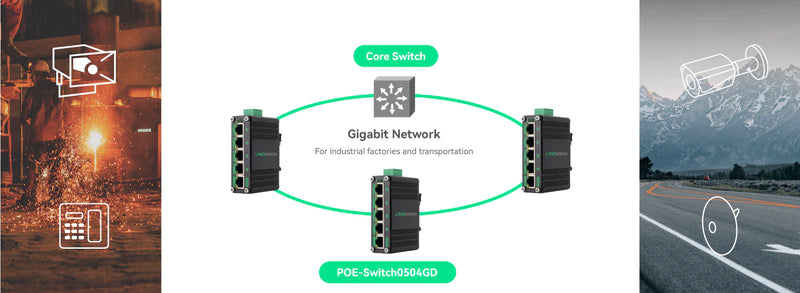

Application 4 – Harsh Environment
Robust data communication and POE transmission in hardened environments
Package & Installation
| Model | POE-Switch0504GD |
|---|---|
| Technical Specification | |
| Standards | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3af/at |
| Forward & Filtering Rate | 1,488,000pps (1000Mbps) |
| Packet Buffer | 1Mbits |
| Packet Length | 10Kbytes |
| MAC Address Table | 8K |
| Switch Fabric | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
| Connector | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Mode | Mode B |
| PoE Line Pair | 4/5(+)，7/8(-) |
| Operating Temperature | -40°F to 176°F (-40°C to 80°C) |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Input Power | 9~54V DC (Terminal Block) |
| Power Consumption | <6W (PoE In Use: <125W) |
| Power Input Overload | Automatic Resettable |
| Reverse Polarity | Present |
| Dimensions (WxDxH) | 3.74"x2.75"x1.14" (95 x 70x 29mm) |
| Weight | 0.551lb (250g) |
| Casing | Aluminum Case |
| Mounting Options | DIN-Rail / Wall-mount |
LINOVISION DC12V PoE Switch Selection Guide
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
|
|---|---|---|---|---|---|
| Model | POE-Switch0504GD | POE-Switch0504GDF | POE-SW506GD-BT | POE-Switch1008-Solar | POE-SWR612GM-SOLAR |
| PoE Input | 9V~54V DC, Dual channels |
9V~54V DC, Dual channels |
9V~54V DC, Dual channels |
9.5V~54V DC, Dual channels |
8V~54V DC, Dual channels |
| Uplink Ports | 1Gigabit Ethernet Uplink | 1Gigabit SFP | 1*Gigabit SFP 1*Gigabit Ethernet Uplink |
2Gigabit SFP | 2*Gigabit SFP 2*Gigabit Ethernet Uplink |
| PoE Outputs | 4 * Gigabit PoE Ports, IEEE802.3af/at | 4 * Gigabit PoE Ports, IEEE802.3af/at | 3 * Gigabit 802.3BT PoE 1 * Passive 24V PoE |
8 * Gigabit PoE Ports, IEEE802.3af/at | 8 * Gigabit PoE Ports, IEEE802.3af/at |
| POE++ Ports | / | / | Port 1-3 | / | / |
| POE Pin Assignment | 4/5(+),7/8(-) | 1/2(+),3/6(-) | 1/2/4/5(+), 3/6/7/8(-) | 1/2(+),3/6(-) | 1/2(+),3/6(-) |
| POE budget | 120W (DC24V/48V), 60W (DC12V) |
120W (DC24V/48V), 60W (DC12V) |
120W (DC24V/48V), 90W (DC12V) |
240W (DC48V), 120W (DC24V) |
240W (DC48V), 180W (DC24V), 70W (DC12V) |
| L2/L3 Management | / | / | / | / | VLAN, QoS, ACL,SSH,LLDP, Static Routing , Link Aggregation |
| Dimension | 3.74x2.75x1.14" (95x70x29mm) |
3.74x2.75x1.14" (95x70x29mm) |
3.74x2.75x1.14" (95x70x29mm) |
6.24x4.3x1.8" (159×110×46.5mm) |
1.96x6.73x4.72" (50x171x120mm) |
| Managed in CLOUD | / | / | / | / | RemoteMonit |
Compared to a regular industrial PoE switch, this solar PoE switch has a built-in DC9V to DC54V voltage booster so it can be powered by any power source between DC9V and DC54V, for example, DC12V from solar power system, DC12V from vehicle battery, DC24V from commercial buildings, etc.
It provides PoE power to all of the standard IEEE802.3af/at PoE devices, like IP security cameras, VoIP phones, PoE wireless AP, etc.
No power adapter is included. You can use it with a regular DC12V or DC24V power adapter, or industrial DC12V power supply unit.
Yes, sure, that is what this PoE device designed for.
This PoE switch can be powered by two channels of DC power inputs. If there is one power input fails, another power input will ensure non-stop operation of this PoE switch.
If the PoE switch is not connected to a device, the current is 0.5A. If devices are connected, the maximum current depends on the power consumption of the connected devices, with a maximum of 5.5A.
Insert positive 1 and 2, and negative 3 and 6.
Yes, sure. Each PoE port supports PoE automatic detection. When connecting to a non-POE device, it provide data transmission only, and will not output power to prevent burn or damage.
No, the POE Switch supports standard IEEE802.3af/at 48V POE Power. It does not support 24V Passive POE. Please contact us to get POE 48V to PoE 24V adapter.
